WET MILLING ATTRITOR - BATCH TYPE

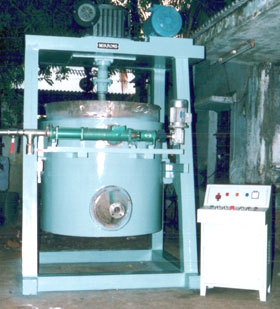

"Batch" Type - Standard Model - Attritor

MIKRONS® production model - wet milling- batch attritors are highly efficient, durable and versatile easy to maintain grinding mills suitable for grinding highly viscous material such as latex, chocolate, nut, paste, paint, tungsten carbide etc.

Attritors can be used to meet the requirements of even the most stringent applications such as the electronic industry. For this application, attritors are available with metal-free teflon/tungsten carbide coating systems to assure a contamination-free environment.

The main advantage of a batch mill is that the material can be inspected any time during the grinding cycle. Therefore, adjustments or formulation additions can be accomplished without stopping the machine.
A recirculation pump will be provided for discharging the end product from grinding chamber. This aids in accelerated and uniform attrition activity. A worm gear assembly attached to the tank allows the tank to be tilted. In this position, the shaft and arms can be easily removed and/or inspected and the grinding media changed, if necessary.

The tank has a ball discharge valve and media discharge chute at the bottom for easy removal of media. A water-cooled cover with a floating teflon seal minimizes solvent loss.
Our Batch- attritors are designated as "S" (Standard). Batch Attritors range in size from a 100 liters gross tank capacity to a 2000 liters gross tank capacity.


Optional
Our Attritors can be used for milling hardest material such as tungsten carbide. These models are equipped with higher horse power. In addition the arms are provided with TC sleeve to reduce wear.

Capacity Table - Standard Batch Type Attritor

S.NO

Model

T.V(L)

O.V(L)

H.P

MEDIA(KG)

1

ATTR 5S

30

15

3

19

2

ATTR 10S

60

26

5

34

3

ATTR 15S

90

37

7.5-10

45

4

ATTR 30S

195

85

10-20

95

5

ATTR 50S

300

125

15-25

140

6

ATTR 100S

585

264

25-40

285

7

ATTR 200S

756

529

40-75

567

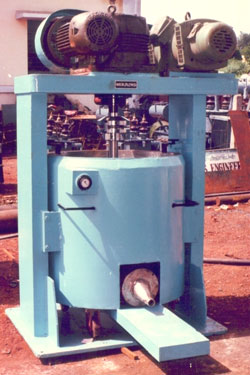

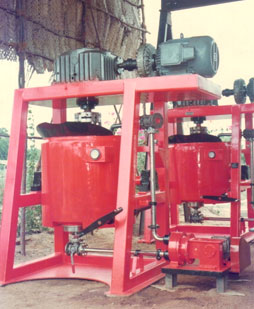

PRODUCTION MODELS
MODEL- 5S






MODEL- 10S


Description
Tech.Data
Volume of Product - Litres
40
Grinding ball charge flints, steatite or glass - Kgs
125
Steel ball charge - Kgs
280
Speed of Agitator - rpm
150
Capacity of Agitator drive motor with flint or steatite charge - KW
5.0
With steel ball charge - KW
10
Speed of Agitator motor - rpm
1500
Pump Motor - rpm
-
Pump motor - KW
-
Area required - mms
150x700
Weight of machine without ball charge net - Kgs
750
Weight of machine without ball charge gross - Kgs
900
Space required – M3
2.5

MODEL - 15S


Description
Tech.Data
Volume of Product - Litres
60-70
Grinding ball charge flints, steatite or glass - Kgs
180
Steel ball charge - Kgs
500
Speed of Agitator - rpm
120
Capacity of Agitator drive motor with flint or steatite charge - KW
6.8
With steel ball charge - KW
10
Speed of Agitator motor - rpm
1500
Pump Motor - rpm
-
Pump motor - KW
-
Area required - mms
1100x1800
Weight of machine without ball charge net - Kgs
900
Weight of machine without ball charge gross - Kgs
1150
Space required – M3
2.8

MODEL - 30S


Description
Tech.Data
Volume of Product - Litres
100-100
Grinding ball charge flints, steatite or glass - Kgs
350
Steel ball charge - Kgs
1000
Speed of Agitator - rpm
110
Capacity of Agitator drive motor with flint or steatite charge - KW
10
With steel ball charge - KW
13.5
Speed of Agitator motor - rpm
1500
Pump Motor - rpm
1500
Pump motor - KW
1.1
Area required - mms
1500x1850
Weight of machine without ball charge net - Kgs
1150
Weight of machine without ball charge gross - Kgs
1400
Space required – M3
4
MODEL - 60S


Description
Tech.Data
Volume of Product - Litres
150-180
Grinding ball charge flints, steatite or glass - Kgs
450
Steel ball charge - Kgs
1500
Speed of Agitator - rpm
90
Capacity of Agitator drive motor with flint or steatite charge - KW
13.5
With steel ball charge - KW
17.5
Speed of Agitator motor - rpm
1500
Pump Motor - rpm
1500
Pump motor - KW
1.1
Area required - mms
1300x1650
Weight of machine without ball charge net - Kgs
1580
Weight of machine without ball charge gross - Kgs
1900
Space required – M3
5.5
MODEL - 100S


Description
Tech.Data
Volume of Product - Litres
300
Grinding ball charge flints, steatite or glass - Kgs
750
Steel ball charge - Kgs
1800
Speed of Agitator - rpm
80
Capacity of Agitator drive motor with flint or steatite charge - KW
17.5
With steel ball charge - KW
24
Speed of Agitator motor - rpm
1500
Pump Motor - rpm
1500
Pump motor - KW
1.1
Area required - mms
1500x2200
Weight of machine without ball charge net - Kgs
2050
Weight of machine without ball charge gross - Kgs
2400
Space required – M3
7.5

MODEL - 200S



Description

Tech.Data
Volume of Product - Litres
500
Grinding ball charge flints, steatite or glass - Kgs
1500
Steel ball charge - Kgs
2800
Speed of Agitator - rpm
60
Capacity of Agitator drive motor with flint or steatite charge - KW
35
With steel ball charge - KW
45
Speed of Agitator motor - rpm
-
Pump Motor - rpm
1500
Pump motor - KW
1.5
Area required - mms
1700x2500
Weight of machine without ball charge net - Kgs
3250
Weight of machine without ball charge gross - Kgs
3800
Space required – M3
9
